ASTM A269 / ASME SA269 Stainless Steel Coiled Tubing , coiled stainless tubing

  • 1
  • 2

Brand Name : MTSCO

Model Number : MTSCOSSCT60

Certification : ISO 9001 & PED & AD2000

Place of Origin : CHINA

MOQ : negotiable

Price : 5500-10000USD/TON

Payment Terms : T / T ; L / C

Supply Ability : 300 Tons / Month

Delivery Time : 30 Days

Packaging Details : Iron Case / Plywood Case

Material : 1.4301 / 1.4404

Standard : ASTM A269 / ASTM A213 Dual Standards Etc

Delivery Condition : Soft / Hard

Type : welded

Surface : Bright Annealed / Pickled

Feature : flame retardant

Contact Now

ASTM A269 / ASME SA269 Stainless Steel Welded Super Long Multi-core Coiled Tube For Marine

Where the multi-core coiled tubing used ?

Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L.

Ordering code number

Tube size

(O.D x Thickness x Core)

Overall Diameter

(.mm)

Sheath Thickness

(.mm)

Bundle Weight

(kg/M)

Max Pressure

(Bar)

HTD-1 6×1.0×1 8 1.0 0.15

Working:180Bar

Test:270Bar

HTD-2 6×1.0×2 20 2.0 0.60
HTD-3 6×1.0×3 21 2.0 0.75
HTD-4 6×1.0×4 24 2.0 0.82
HTD-5 6×1.0×5 25 2.0 0.90
HTD-6 6×1.0×6 27 2.0 1.04
HTD-7 6×1.0×7 27 2.0 1.15
HTD-8 6×1.0×8 32 2.2 1.40
HTD-9 8×1.0×1 10 1.0 0.28
HTD-10 8×1.0×2 24 1.8 0.89
HTD-11 8×1.0×3 26 2.0 1.12
HTD-12 8×1.0×4 28 2.0 1.33
HTD-13 8×1.0×5 31 2.0 1.67
HTD-14 8×1.0×6 34 2.0 2.00
HTD-15 8×1.0×7 34 2.0 2.15
HTD-16 8×1.0×8 40 2.2 2.60
HTD-17 10×1.0×1 13 1.0 0.34
HTD-18 10×1.0×2 28 1.8 1.18
HTD-19 10×1.0×3 31 2.0 1.60
HTD-20 10×1.0×4 34 2.0 1.97
HTD-21 10×1.0×5 37 2.0 2.20
HTD-22 10×1.0×6 40 2.0 2.40
HTD-23 10×1.0×7 40 2.0 2.52
HTD-24 10×1.0×8 48 2.5 3.20
HTD-25 12×1.0×1 14 1.0 0.41
HTD-26 12×1.0×2 34 2.0 1.35
HTD-27 12×1.0×3 36 2.0 1.96
HTD-28 12×1.0×4 39 2.0 2.37
HTD-29 12×1.0×5 43 2.0 2.70
HTD-30 12×1.0×6 47 2.0 3.00
HTD-31 12×1.0×7 47 2.0 3.14
HTD-32 12×1.0×8 55 2.5 3.90

ASTM A269 / ASME SA269 Stainless Steel Coiled Tubing , coiled stainless tubing

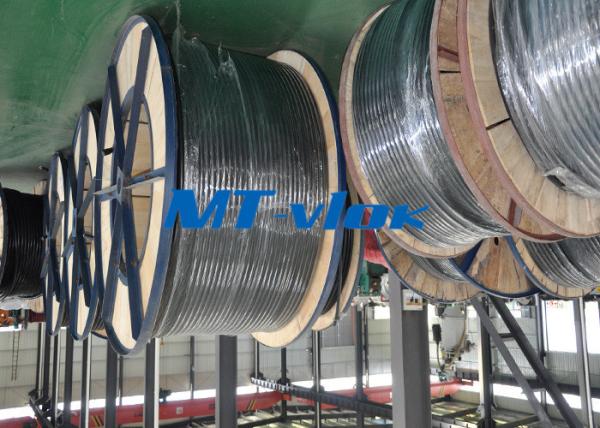

The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.

Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L. The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
