ASTM A213 / ASTM A269 TP304L Heat Exchanger Stainless Steel Tube For Fluid and Gas

  • 1
  • 2

Brand Name : MTSCO

Model Number : MTSCOHET45

Certification : ISO 9001 & PED & AD2000

Place of Origin : CHINA

MOQ : negotiable

Price : 3700-9000USD/TON

Payment Terms : T / T ; L / C

Supply Ability : 300 Tons / Month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Material : 300 Series

Surface : Pickling

U bent part surface : Annealing , Not Pickling

Length : 18 m

Standard : ASTM A213

Inspection : 100%

Contact Now

ASTM A213 / ASTM A269 Small Diameter TP304L Stainless Steel Heat Exchanger Tube For Fluid and Gas

Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .

Chemical Composition :

Material ASTM A269 Chemical Composition % Max
C Mn P S Si Cr Ni Mo N B Nb Ti
TP304 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 ^ ^ ^. ^
TP304L 0.035 2 0.045 0.03 1 18.0-20.0 8.0-12.0 ^ ^ ^ ^
TP316 0.08 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.00-3.00 ^ ^ ^
TP316L 0.035 D 2 0.045 0.03 1 16.0-18.0 10.0-15.0 2.00-3.00 ^ ^ ^
TP321 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 ^ ^ ^ 5C -0.70
TP347 0.08 2 0.045 0.03 1 17.0-19.0 9.0-12.0 　 　 10C -1.10 ^

ASTM A213 / A213 M
Elements 304L(wt%) 316L (wt%)
(C) Carbon, max 0.035 0.035
(Mn) Manganese, max 2 2
(P) Phosphorus, max 0.045 0.045
(S) Sulfur, max 0.03 0.03
(Si) Silicon, max 1 1
(Ni) Nickel 8.0 - 12.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 16.0 - 18.0
(Mo) Molybdenum N/A 2.0 - 3.0
(Fe) Iron Bal. Bal.
(Cu) Copper N/A N/A
(N) Nitrogen N/A N/A

Process :

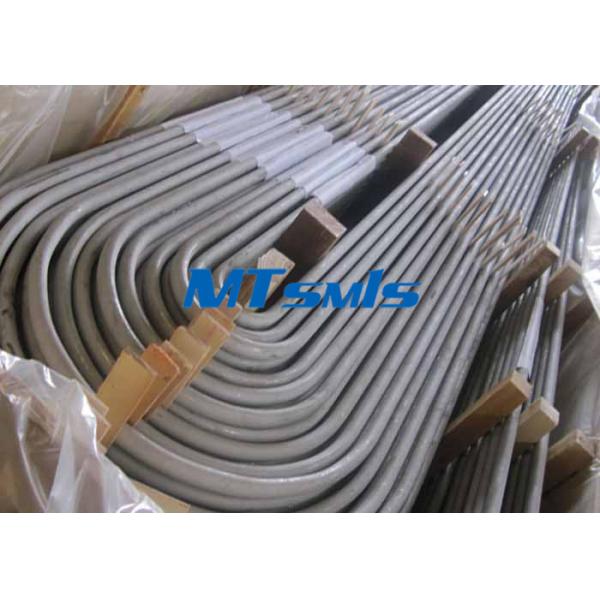

1 . We use Cold Drawn techonology to produce U bend tube
2 . U bend tubes produce will accordance to customer's drawings
3 . To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
4 . The radius is checked for its OD and wall thinning with the recommended specification
5 . We'll choose three different position or as customer's require to make sure tubes quality . We'll do physical properties and micro-structure test
6 . Visual inspection for waviness and cracks is done with Dye Penetrant Test
7 . Each tube is then hydro tested at the recommended pressure to check for leakage

ASTM A213 / ASTM A269 TP304L Heat Exchanger Stainless Steel Tube For Fluid and Gas
